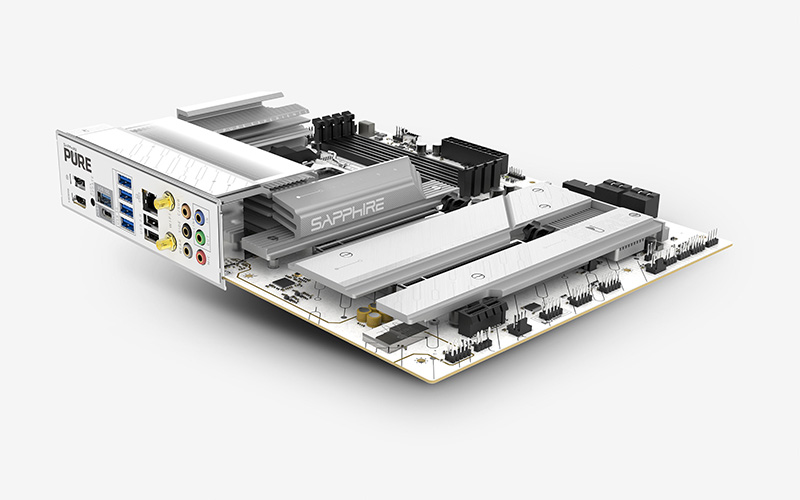

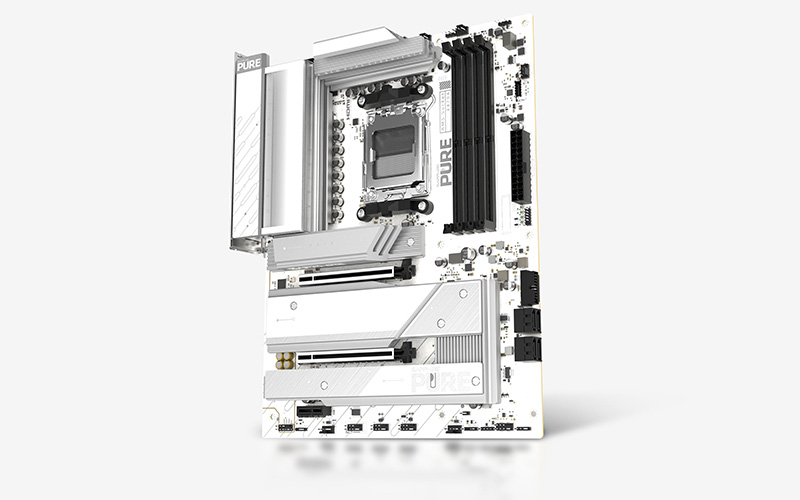

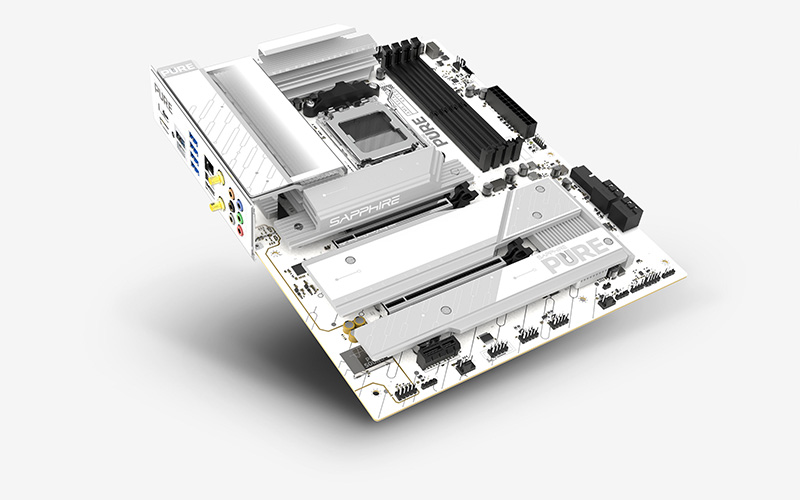

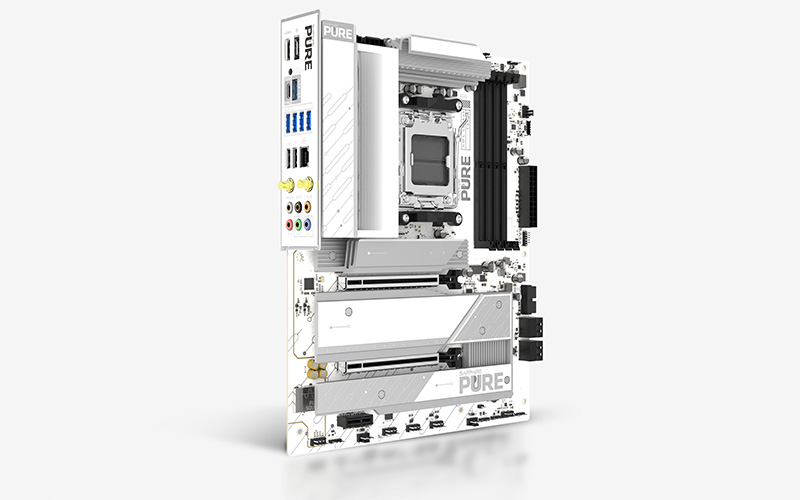

SAPPHIRE PURE X870A WIFI 7 is a premium ATX motherboard designed for AMD Ryzen™ desktop processors using the AM5 socket. Powered by the AMD X870 chipset, it combines high-performance processing support with DDR5 memory, PCIe 5.0, USB4, 5Gb Ethernet, and Wi-Fi 7 connectivity. (Call For Stock)
Chipset
AMD® X870
CPU Support
Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory Support
4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8400 MHz(OC)
PCI-E Expansion Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 3.0 x1 in 1x slot
Display Connector
DisplayPort x1, HDMI x1
Audio
Realtek® ALC897 HD Audio, 7.1 Channel
Network
Realtek® RTL8126 5 Gigabit Ethernet M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support
Front USB Headers
1x USB 3.2 Gen2 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)
Rear Ports
1 × DisplayPort, 1 × HDMI ™, 1 × RJ45 LAN, 2 × Wi Fi Antenna One-click Flash BIOS Button, 2× USB 2.0, 4× USB 3.2 Gen1 Type-A 1× USB 3.2 Gen2 Type-A, 6× Audio Jacks 1x USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C
Storage
1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA
Dimensions
ATX, 305x245mm
Debug LED
DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
