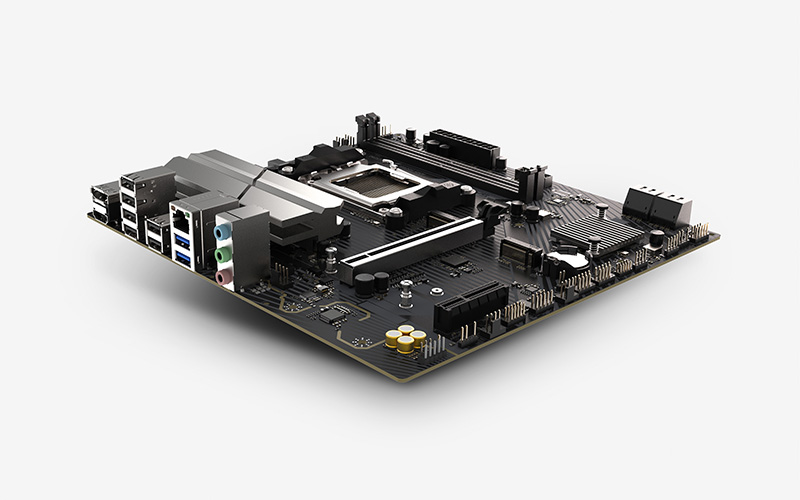

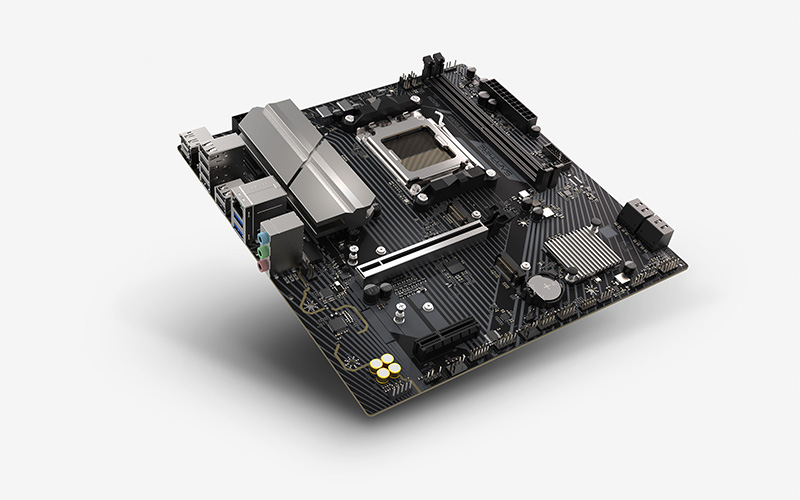

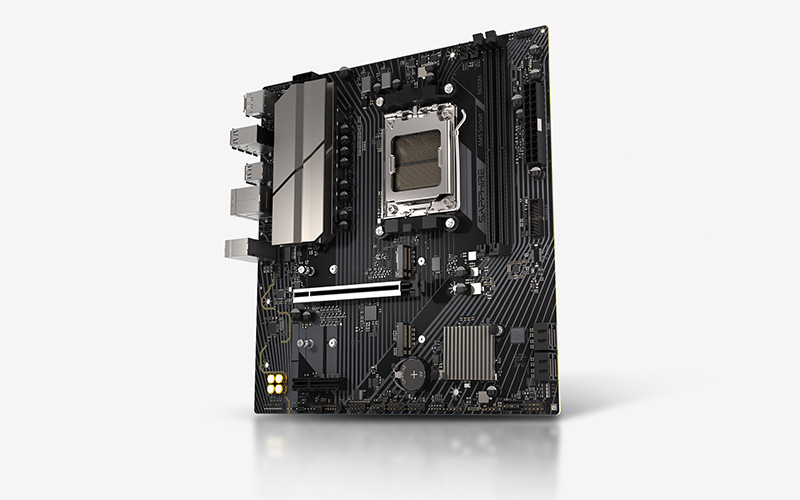

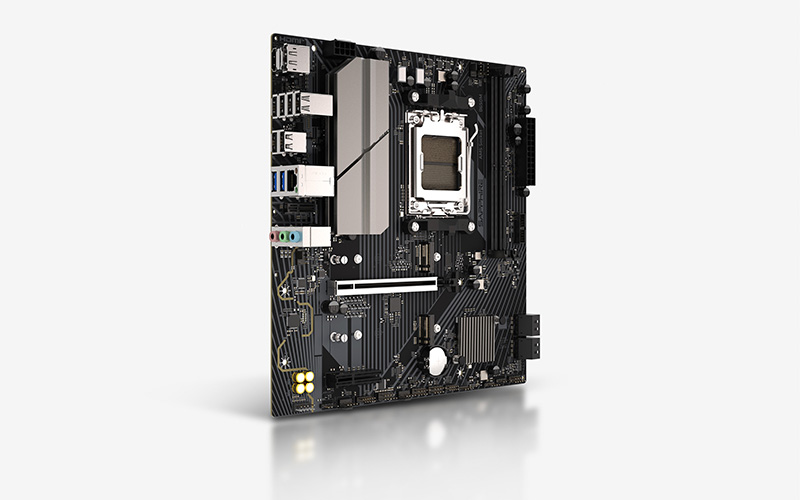

SAPPHIRE B650M-E is a practical and reliable Micro-ATX motherboard designed for users who want a solid foundation for a modern AMD AM5 desktop system. Built around the AMD B650 chipset, it combines dependable performance, DDR5 memory support, and high-speed connectivity in a compact form factor. (Call For Stock)
Chipset
AMD® B650
CPU Support
Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory Support
2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 96GB (2x 48GB), up to 7600 MHz(OC)
PCI-E Expansion Slots
1x PCIe 4.0 x16, 1x PCIe 4.0 x4
Display Connector
DisplayPort x1, HDMI x1
Audio
Realtek® ALC897 HD Audio, 5.1 Channel
Network
Realtek® RTL8125BG 2.5 Gigabit Ethernet
Front USB Headers
1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)
Rear Ports
1× DisplayPort, 1× HDMI™ 6× USB 2.0, 2× USB 3.2 Gen1 Type-A 1× RJ45 LAN, 3× Audio Jacks
Storage
1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA
Dimensions
Micro-ATX, 244x235mm
Debug LED
DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
