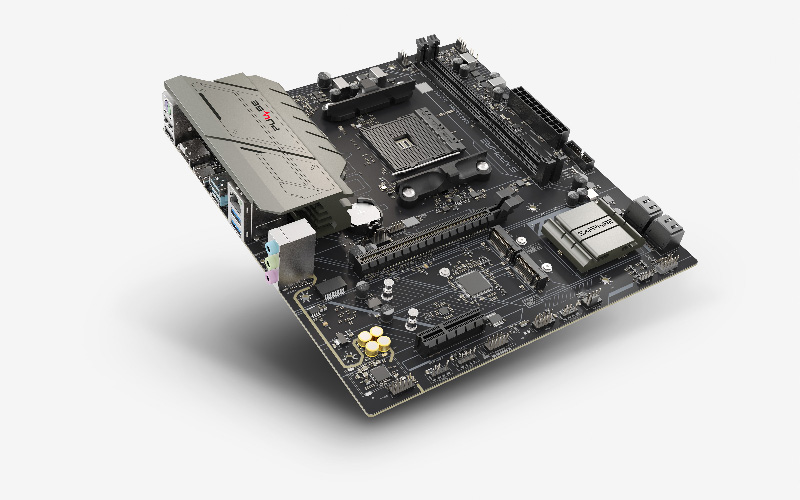

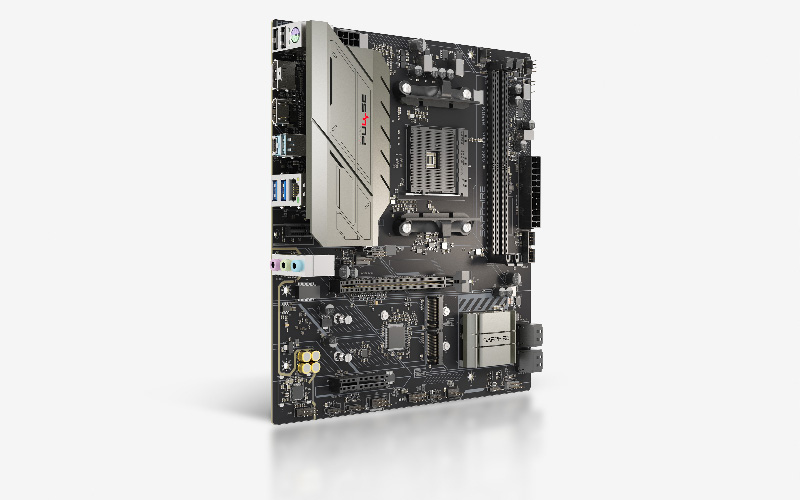

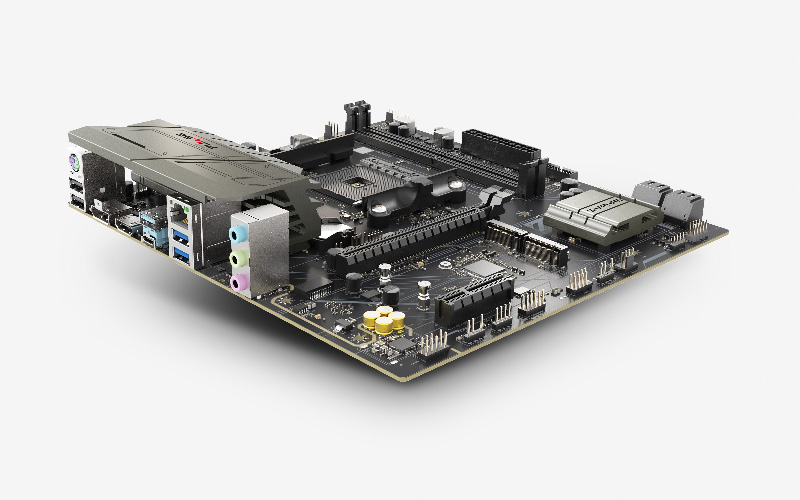

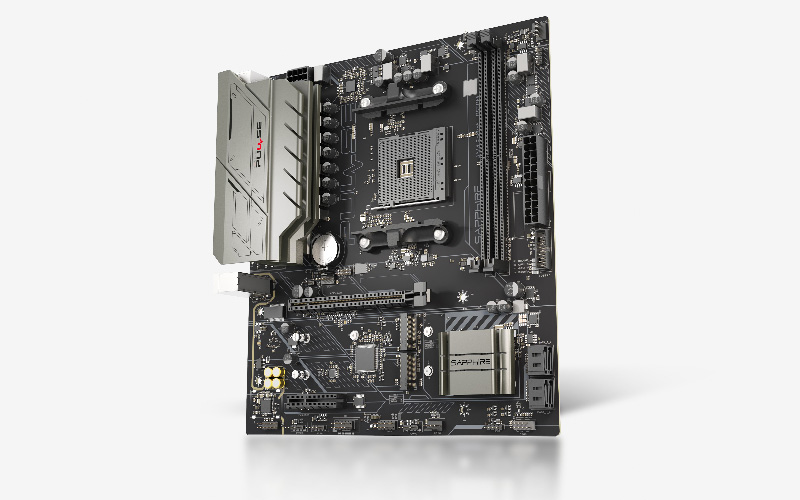

SAPPHIRE PULSE B550M is a compact and reliable Micro-ATX motherboard designed to deliver dependable performance for modern AMD-based desktop systems. Built around the AMD B550 chipset, it provides an excellent foundation for gaming, productivity, entertainment, and everyday computing. (Call For Stock)
Chipset
AMD® B550
CPU Support
Supports AMD Socket AM4 Processors including Ryzen™ 5000 / 4000 / 3000 Series Desktop Processors
Memory Support
2x DIMMS, Dual Channel DDR4, Maximum Memory Capacity 64GB(2x 32GB), up to 4000+ MHz(OC)
PCI-E Expansion Slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x4
Display Connector
DisplayPort x1, HDMI x1
Audio
Realtek® ALC897 HD Audio, 5.1 Channel
Network
Realtek® RTL8125 2.5 Gigabit Ethernet
Front USB Headers
1x USB 3.2 Gen1 (2 x Type-A), 1x USB 2.0 (2 x Type-A)
Rear Ports
1× HDMI ™, 1× DisplayPort, 1× PS/2 2× USB 2.0, 3× USB 3.2 Gen 1 Type-A, 1× USB 3.2 Gen 1 Type-C 1× LAN (RJ45) 3× Audio Jacks
Storage
1x PCIe 4.0 M.2, 1x PCIe 3.0 M.2, 4x SATA
Dimensions
Micro-ATX, 245 x 225mm
Debug LED
DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
