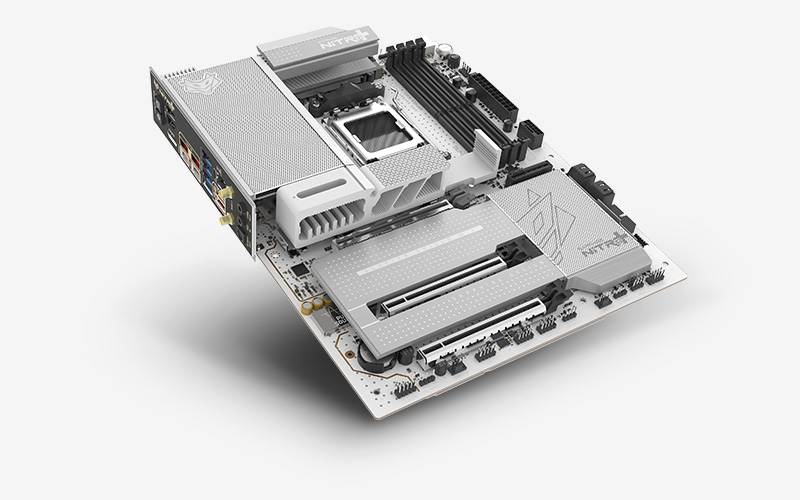

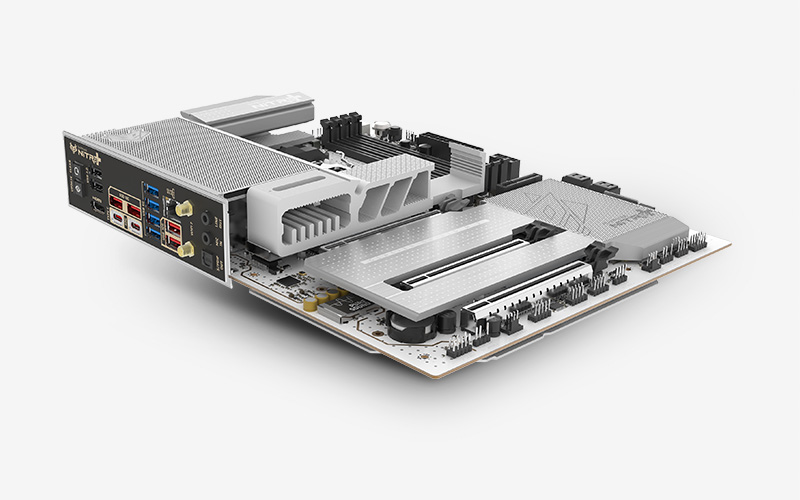

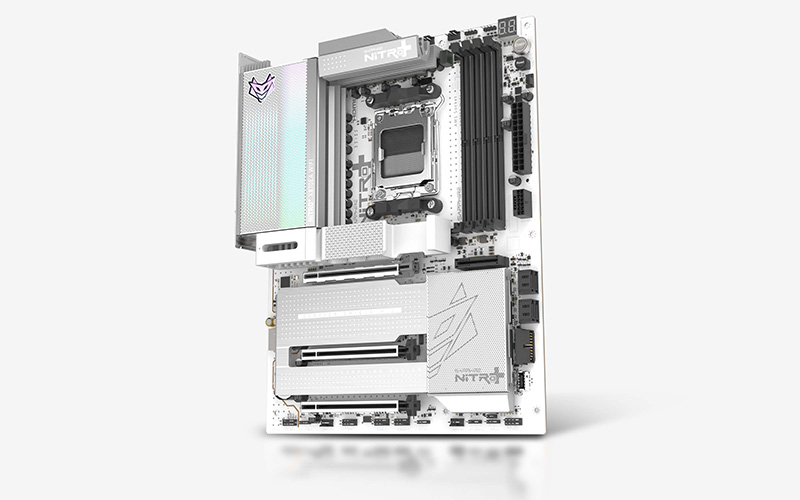

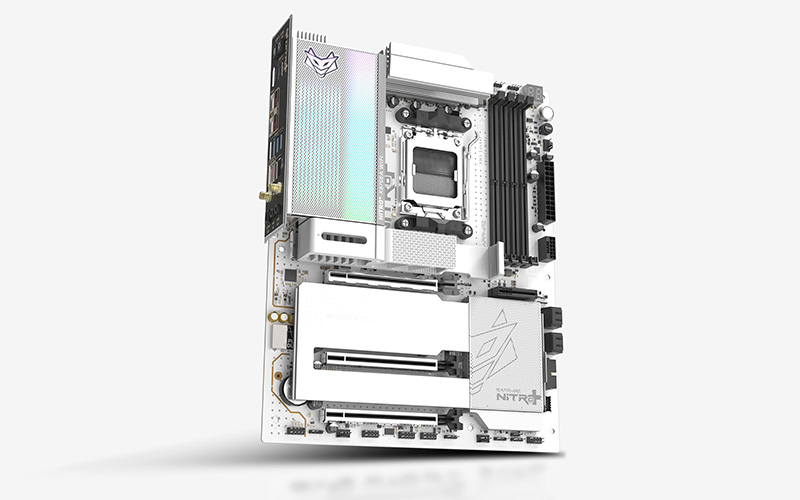

APPHIRE NITRO+ X870EA PhantomLink Polar Edition is a premium AM5 motherboard designed for high-performance AMD Ryzen™ desktop processors. Featuring the advanced AMD X870E chipset, DDR5 memory support, PCIe 5.0 connectivity, next-generation networking, and SAPPHIRE's distinctive PhantomLink hidden-connector design, it is built for enthusiasts who want powerful performance combined with a clean and modern PC aesthetic. (Call For Stock)
Chipset
AMD® X870E
CPU Support
Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory Support
4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8400 MHz(OC)
PCI-E Expansion Slots
1x PCIe 5.0 x16, 2x PCIe 4.0 x4 in 16x slot
Display Connector
HDMI x1
Audio
Realtek® ALC897 HD Audio, 5.1 Channel with S/PDIF
Network
Realtek® RTL8126 5 Gbps Ethernet M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support
Front USB Headers
1x USB 3.2 Gen2x2 (1 x Type-C, 30W PD) 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)
Rear Ports
1× HDMI™, 1× RJ45 LAN, 2× Wi-Fi Antenna One-click Flash BIOS Button, One-click clear CMOS 2× USB 2.0, 4× USB 3.2 Gen1 Type-A, 4× USB 3.2 Gen2 Type-A 2× USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C, 2x Audio Jack+S/PDIF
Storage
2x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA
Dimensions
ATX, 305x244mm
Debug LED
DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
Debug Diagnostic Screen
LED Debug Diagnostic Screen
