Spesification :
Produktivitas Tinggi : PCIe Gen5 (GPU, M.2), DDR5 Dual Channel.
Durabilitas : 10+1+1+1+1 Power Phase, Dr.MOS, Pre-Installed I/O Shield.
Konektivitas Cepat : 2.5G LAN.
Kemudahan Update : BIOS Flashback Button, Auto Driver Installer.
Troubleshooting Mudah : ASRock Post Status Checker.
Spesifikasi Utama :
CPU : Intel Core Ultra Series 2 (LGA1851) dengan NPU AI.
Chipset : Intel B860.
RAM : 4x DDR5, hingga 8666+ MHz (OC), max 256GB, XMP 3.0.
GPU : Intel Xe Graphics, HDMI 2.1 (4K 120Hz), DP 1.4 (8K 60Hz).
Audio : Realtek ALC897, Nahimic Audio.
LAN : Dragon 2.5G LAN (RTL8125BG), Smart Bandwidth Control.
Slot Ekspansi & Penyimpanan :
PCIe: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4.
M.2 :
1x Blazing M.2 Gen5x4 (CPU).
2x Hyper M.2 Gen4x4 (Chipset).
4x SATA 6Gb/s (RAID 0/1/5/10).
Port & Konektor :
USB :
1x USB 3.2 Gen2x2 Type-C (Rear).
1x USB 3.2 Gen1 Type-C (Front).
7x USB 3.2 Gen1 (3 Rear, 4 Front).
6x USB 2.0 (2 Rear, 4 Front).
Konektor Penting :
3x Addressable LED, 1x RGB LED.
2x CPU Fan, 3x Chassis Fan, 1x AIO Pump.
1x 24-pin ATX, 1x 8-pin & 1x 4-pin 12V.
Lainnya :
BIOS : 256Mb UEFI GUI, EZ Mode, Instant Flash.
Software : ASRock A-Tuning, Polychrome SYNC.
Form Factor : Micro-ATX (24.4 cm x 24.4 cm).
OS : Windows 11 64-bit.
(Call For Stock)
Produktivitas Tinggi : PCIe Gen5 (GPU, M.2), DDR5 Dual Channel.
Durabilitas : 10+1+1+1+1 Power Phase, Dr.MOS, Pre-Installed I/O Shield.
Konektivitas Cepat : 2.5G LAN.
Kemudahan Update : BIOS Flashback Button, Auto Driver Installer.
Troubleshooting Mudah : ASRock Post Status Checker.
Spesifikasi Utama :
CPU : Intel Core Ultra Series 2 (LGA1851) dengan NPU AI.
Chipset : Intel B860.
RAM : 4x DDR5, hingga 8666+ MHz (OC), max 256GB, XMP 3.0.
GPU : Intel Xe Graphics, HDMI 2.1 (4K 120Hz), DP 1.4 (8K 60Hz).
Audio : Realtek ALC897, Nahimic Audio.
LAN : Dragon 2.5G LAN (RTL8125BG), Smart Bandwidth Control.
Slot Ekspansi & Penyimpanan :
PCIe: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4.
M.2 :
1x Blazing M.2 Gen5x4 (CPU).
2x Hyper M.2 Gen4x4 (Chipset).
4x SATA 6Gb/s (RAID 0/1/5/10).
Port & Konektor :
USB :
1x USB 3.2 Gen2x2 Type-C (Rear).
1x USB 3.2 Gen1 Type-C (Front).
7x USB 3.2 Gen1 (3 Rear, 4 Front).
6x USB 2.0 (2 Rear, 4 Front).
Konektor Penting :
3x Addressable LED, 1x RGB LED.
2x CPU Fan, 3x Chassis Fan, 1x AIO Pump.
1x 24-pin ATX, 1x 8-pin & 1x 4-pin 12V.
Lainnya :
BIOS : 256Mb UEFI GUI, EZ Mode, Instant Flash.
Software : ASRock A-Tuning, Polychrome SYNC.
Form Factor : Micro-ATX (24.4 cm x 24.4 cm).
OS : Windows 11 64-bit.
(Call For Stock)
CPU
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration
Chipset
- Intel® B860
Memory
- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Slots
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front)

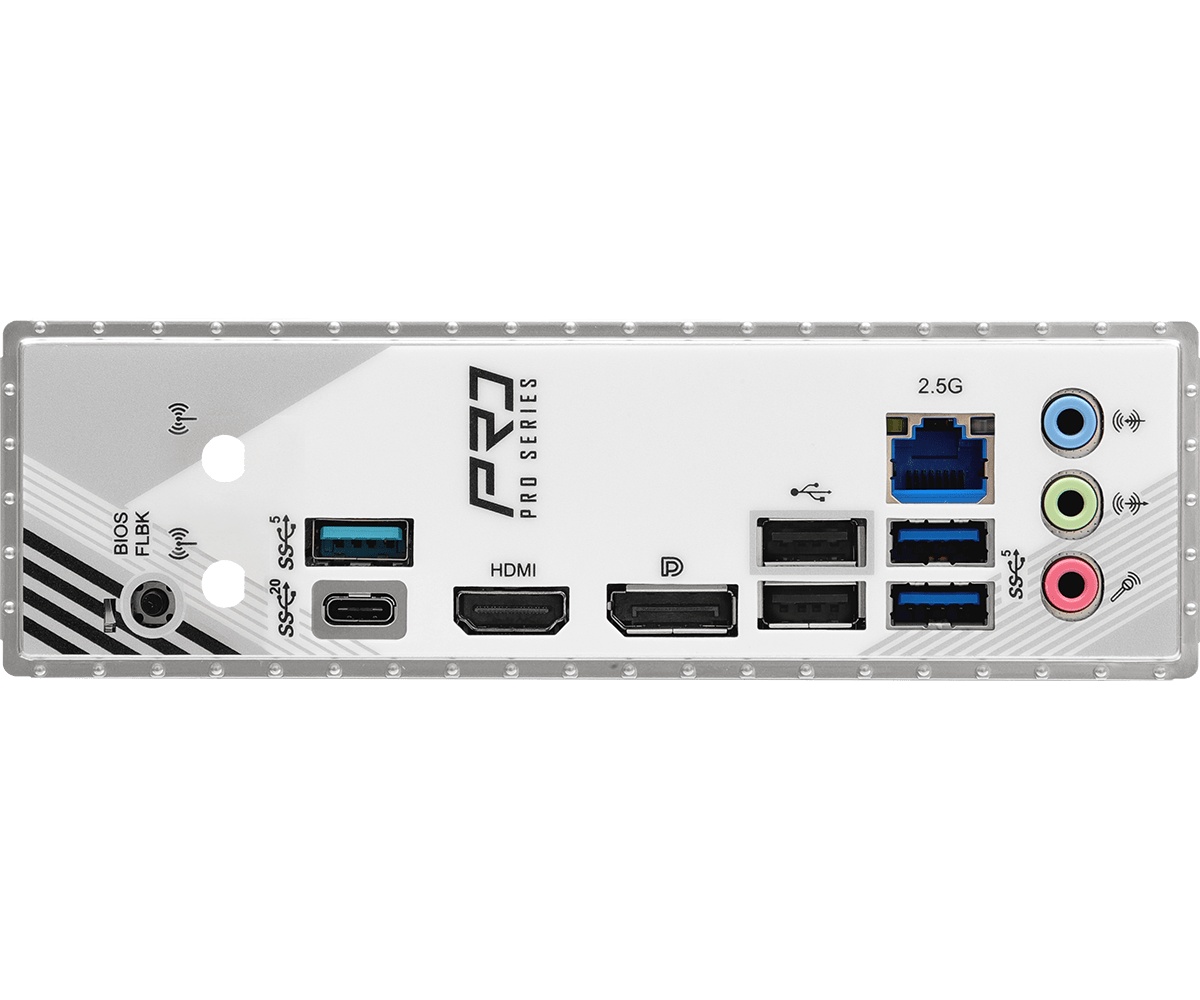

Rear Panel I/O
- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 3 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Operating System
- Microsoft Windows® 11 64-bit
