Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700).
10+1+1 Power Phase, Dr.MOS for VCore+GT.
4 x DDR5 DIMMs.
Supports Dual Channel, up to 7200+ (OC).
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16.
1 PCIe 3.0 x1, 1 M.2 Key E for WiFi.
Graphics Output Options: HDMI, DisplayPort, eDP.
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4).
1 M.2 (PCIe Gen4x2).
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front).
1 USB 3.2 Gen2 Type-A (Rear).
6 USB 3.2 Gen1 (4 Rear, 2 Front).
4 USB 2.0 (2 Rear, 2 Front).
Dragon 2.5G LAN.
Supports ASRock Auto Driver Installer.
(Call For Stock)
10+1+1 Power Phase, Dr.MOS for VCore+GT.
4 x DDR5 DIMMs.
Supports Dual Channel, up to 7200+ (OC).
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16.
1 PCIe 3.0 x1, 1 M.2 Key E for WiFi.
Graphics Output Options: HDMI, DisplayPort, eDP.
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4).
1 M.2 (PCIe Gen4x2).
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front).
1 USB 3.2 Gen2 Type-A (Rear).
6 USB 3.2 Gen1 (4 Rear, 2 Front).
4 USB 2.0 (2 Rear, 2 Front).
Dragon 2.5G LAN.
Supports ASRock Auto Driver Installer.
(Call For Stock)
CPU
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT)
Chipset
- Intel® B760
Memory
- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 256GB - Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Slots
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™
Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
- 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) - 4 x USB 2.0 (2 Rear, 2 Front)
Rear Panel I/O

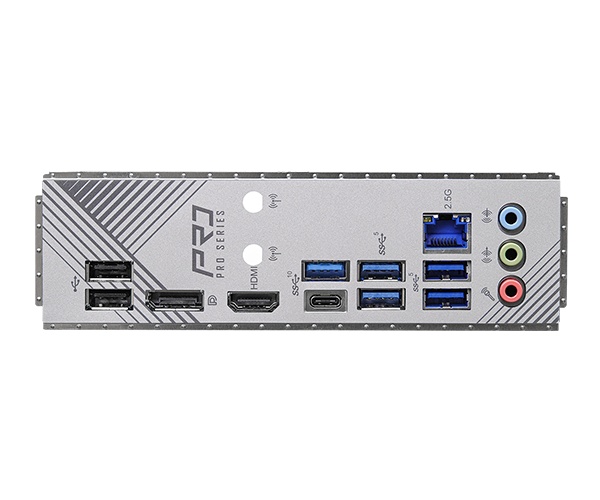

- 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Operating System
- Microsoft Windows® 10 64-bit / 11 64-bit
